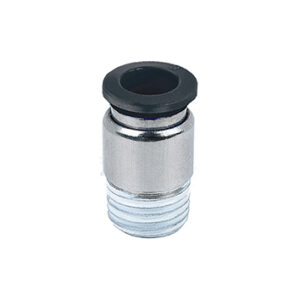

Die Schnellkupplungsanschlüsse der K-Baureihe sind in einer Vielzahl von Formen und Durchmessern erhältlich. Es handelt sich um eine Baureihe von Schnellkupplungsanschlüssen, die die Kosteneffizienz des Produkts mit der Leistung kombinieren, die für die gängigsten industriellen Anwendungen geeignet ist.

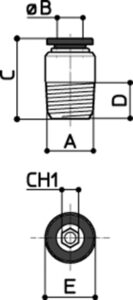

| CODE | A | B | C | D | E | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|
| K10T8040T | R1/8 | 4 | 20 | 8 | 10 | 3 | 6 | 50 |
| K10T4040T | R1/4 | 4 | 18 | 10 | 14 | 3 | 13 | 50 |
| K10T8060T | R1/8 | 6 | 21 | 8 | 12 | 4 | 7 | 50 |
| K10T4060T | R1/4 | 6 | 23 | 10 | 14 | 4 | 10 | 50 |
| K10T3060T | R3/8 | 6 | 21 | 11 | 17 | 4 | 21 | 25 |
| K10T2060T | R1/2 | 6 | 24,5 | 12 | 21 | 5 | 39 | 50 |
| K10T8080T | R1/8 | 8 | 26 | 8 | 14 | 5 | 10 | 50 |
| K10T4080T | R1/4 | 8 | 25 | 10 | 14 | 5 | 10 | 50 |
| K10T3080T | R3/8 | 8 | 22 | 11 | 17 | 6 | 18 | 50 |
| K10T2080T | R1/2 | 8 | 26 | 14 | 21 | 6 | 33 | 50 |
| K10T8100T | R1/8 | 10 | 30 | 8 | 17 | 5 | 15 | 50 |
| K10T4100T | R1/4 | 10 | 31 | 10 | 17 | 6 | 17 | 50 |
| K10T3100T | R3/8 | 10 | 29 | 11 | 17 | 8 | 20 | 50 |
| K10T2100T | R1/2 | 10 | 27 | 14 | 21 | 8 | 31 | 25 |
| K10T4120T | R1/4 | 12 | 33 | 10 | 21 | 6 | 20 | 25 |
| K10T3120T | R3/8 | 12 | 30 | 11 | 21 | 8 | 21 | 25 |
| K10T2120T | R1/2 | 12 | 32 | 14 | 21 | 8 | 29 | 25 |
| K10T3140T | R3/8 | 14 | 35 | 10,5 | 22,4 | 31 | 20 | |
| K10T2140T | R1/2 | 14 | 35 | 12 | 22,4 | 42 | 20 | |
| K10T3160T | R3/8 | 16 | 36 | 11 | 24 | 44 | 10 | |
| K10T2160T | R1/2 | 16 | 36 | 14 | 24 | 43 | 10 |
