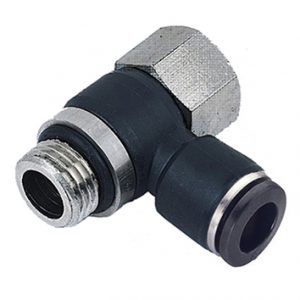

K17 Winkel-Einschraubanschluss+Or Serie-K, Innen-Aussengewinde, Zylindrisc

Die Schnellkupplungsanschlüsse der K-Baureihe sind in einer Vielzahl von Formen und Durchmessern erhältlich. Es handelt sich um eine Baureihe von Schnellkupplungsanschlüssen, die die Kosteneffizienz des Produkts mit der Leistung kombinieren, die für die gängigsten industriellen Anwendungen geeignet ist.

CODE	A	B	C	D	E	F	G	CH	GR
K178048	G1/8	4	28	5	22	G1/8	7	14	25	50
K174048	G1/4	4	33	7	24	G1/4	10	17	30	50
K178068	G1/8	6	28	5	22	G1/8	7	14	14	50
K174068	G1/4	6	33	7	24	G1/4	10	17	25	50
K173068	G3/8	6	39	8	26	G3/8	10	21	42	50
K172068	G1/2	6	46	10	32	G1/2	14	24	81	50
K178088	G1/8	8	28	5	25	G1/8	7	14	14	50
K174088	G1/4	8	33	7	28	G1/4	10	17	26	50
K173088	G3/8	8	39	8	29	G3/8	10	21	43	50
K172088	G1/2	8	46	10	32	G1/2	14	24	82	50
K178108	G1/8	10	30	5	30	G1/8	7	14	17	50
K174108	G1/4	10	33	7	33	G1/4	10	17	29	25
K173108	G3/8	10	39	8	33	G3/8	10	21	46	25
K172108	G1/2	10	46	10	36	G1/2	14	24	83	25
K174128	G1/4	12	35	7	33	G1/4	10	17	32	25
K173128	G3/8	12	39	8	35	G3/8	10	21	48	25
K172128	G1/2	12	46	10	36	G1/2	14	24	87	25

CODE	A	B	C	D	E	F	G	CH	GR
K178048	G1/8	4	28	5	22	G1/8	7	14	25	50
K174048	G1/4	4	33	7	24	G1/4	10	17	30	50
K178068	G1/8	6	28	5	22	G1/8	7	14	14	50
K174068	G1/4	6	33	7	24	G1/4	10	17	25	50
K173068	G3/8	6	39	8	26	G3/8	10	21	42	50
K172068	G1/2	6	46	10	32	G1/2	14	24	81	50
K178088	G1/8	8	28	5	25	G1/8	7	14	14	50
K174088	G1/4	8	33	7	28	G1/4	10	17	26	50
K173088	G3/8	8	39	8	29	G3/8	10	21	43	50
K172088	G1/2	8	46	10	32	G1/2	14	24	82	50
K178108	G1/8	10	30	5	30	G1/8	7	14	17	50
K174108	G1/4	10	33	7	33	G1/4	10	17	29	25
K173108	G3/8	10	39	8	33	G3/8	10	21	46	25
K172108	G1/2	10	46	10	36	G1/2	14	24	83	25
K174128	G1/4	12	35	7	33	G1/4	10	17	32	25
K173128	G3/8	12	39	8	35	G3/8	10	21	48	25
K172128	G1/2	12	46	10	36	G1/2	14	24	87	25
