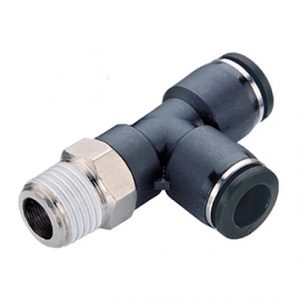

K33 L-Einschraubanschluss (T-Körper) Serie-K

Die Schnellkupplungsanschlüsse der K-Baureihe sind in einer Vielzahl von Formen und Durchmessern erhältlich. Es handelt sich um eine Baureihe von Schnellkupplungsanschlüssen, die die Kosteneffizienz des Produkts mit der Leistung kombinieren, die für die gängigsten industriellen Anwendungen geeignet ist.

CODE	A	B	C	D	E	F	CH	GR
K338040T	R1/8	4	35,7	7,5	12,9	11	10	10	25
K334040T	R1/4	4	39,2	9	12,9	11	14	14	25
K338060T	R1/8	6	39,5	7,5	14,5	13,5	12	15	25
K334060T	R1/4	6	41,5	9	14,5	13,5	14	18	25
K333060T	R3/8	6	43	10,5	14,5	13,5	17	23	25
K332060T	R1/2	6	47	12	14,5	13,5	21	30	25
K338080T	R1/8	8	44,5	7,5	17	14,5	14	19	25
K334080T	R1/4	8	46,5	9	17	14,5	14	20	25
K333080T	R3/8	8	48	10,5	17	14,5	17	25	25
K332080T	R1/2	8	52	12	17	14,5	21	33	25
K338100T	R1/8	10	48	7,5	18,5	18	17	30	25
K334100T	R1/4	10	50	9	18,5	18	17	31	25
K333100T	R3/8	10	51,5	10,5	18,5	18	17	35	25
K332100T	R1/2	10	55	12	18,5	18	21	42	10
K334120T	R1/4	12	59,5	9	23	20,5	21	41	10
K333120T	R3/8	12	60,5	10,5	23	20,5	21	43	10
K332120T	R1/2	12	64	12	23	20,5	21	48	10
K333140T	R3/8	14	66,5	10,5	29	24	17	62	10
K332140T	R1/2	14	69	12	29	24	21	66	10
K333160T	R3/8	16	67,5	10,5	30,5	25,5	19	75	10
K332160T	R1/2	16	71	12	30,5	25,5	21	66	10

CODE	A	B	C	D	E	F	CH	GR
K338040T	R1/8	4	35,7	7,5	12,9	11	10	10	25
K334040T	R1/4	4	39,2	9	12,9	11	14	14	25
K338060T	R1/8	6	39,5	7,5	14,5	13,5	12	15	25
K334060T	R1/4	6	41,5	9	14,5	13,5	14	18	25
K333060T	R3/8	6	43	10,5	14,5	13,5	17	23	25
K332060T	R1/2	6	47	12	14,5	13,5	21	30	25
K338080T	R1/8	8	44,5	7,5	17	14,5	14	19	25
K334080T	R1/4	8	46,5	9	17	14,5	14	20	25
K333080T	R3/8	8	48	10,5	17	14,5	17	25	25
K332080T	R1/2	8	52	12	17	14,5	21	33	25
K338100T	R1/8	10	48	7,5	18,5	18	17	30	25
K334100T	R1/4	10	50	9	18,5	18	17	31	25
K333100T	R3/8	10	51,5	10,5	18,5	18	17	35	25
K332100T	R1/2	10	55	12	18,5	18	21	42	10
K334120T	R1/4	12	59,5	9	23	20,5	21	41	10
K333120T	R3/8	12	60,5	10,5	23	20,5	21	43	10
K332120T	R1/2	12	64	12	23	20,5	21	48	10
K333140T	R3/8	14	66,5	10,5	29	24	17	62	10
K332140T	R1/2	14	69	12	29	24	21	66	10
K333160T	R3/8	16	67,5	10,5	30,5	25,5	19	75	10
K332160T	R1/2	16	71	12	30,5	25,5	21	66	10
