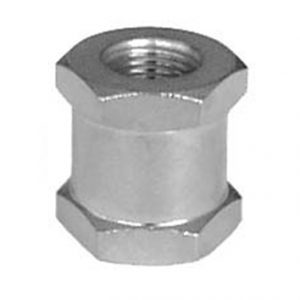

S17 Reduziermuffe

Unter Verbindungsbauteilen versteht man die Hauptsteckverbinder, um die verschiedenen Teile einer Anlage über Gewindeanschlüsse und Schlauchtüllen zu verbinden.

CODE	3D FILE	A	B	C	D	CH	GR
S17850	Download	G1/8	M5	13,5	8	14	8	25
S17480	Download	G1/4	G1/8	19	10	17	20	25
S17380	Download	G3/8	G1/8	20	12	22	40	25
S17340	Download	G3/8	G1/4	23	12	22	42	25
S17240	Download	G1/2	G1/4	25	14	26	63	25
S17230	Download	G1/2	G3/8	28	14	26	64	25
S17720	Download	G3/4	G1/2	30	16,5	32	78	10

Unter Verbindungsbauteilen versteht man die Hauptsteckverbinder, um die verschiedenen Teile einer Anlage über Gewindeanschlüsse und Schlauchtüllen zu verbinden.

CODE	3D FILE	A	B	C	D	CH	GR
S17850	Download	G1/8	M5	13,5	8	14	8	25
S17480	Download	G1/4	G1/8	19	10	17	20	25
S17380	Download	G3/8	G1/8	20	12	22	40	25
S17340	Download	G3/8	G1/4	23	12	22	42	25
S17240	Download	G1/2	G1/4	25	14	26	63	25
S17230	Download	G1/2	G3/8	28	14	26	64	25
S17720	Download	G3/4	G1/2	30	16,5	32	78	10
