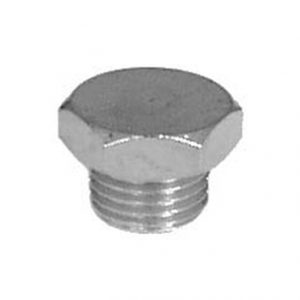

S19 Messing-Stopfen Mit Aussensechskant

Unter Verbindungsbauteilen versteht man die Hauptsteckverbinder, um die verschiedenen Teile einer Anlage über Gewindeanschlüsse und Schlauchtüllen zu verbinden.

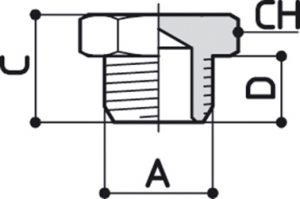

CODE	3D FILE	A	B	C	D	CH	GR
S19050	Download	M5	–	7,5	4	8	2	25
S19080	Download	G1/8	–	10	6	14	8	25
S19040	Download	G1/4	–	13	8	17	14	25
S19030	Download	G3/8	–	15	10	19	22	25
S19020	Download	G1/2	–	16	10	24	34	25
S19070	Download	G3/4	–	16,5	11	30	49	10
S19010	Download	G1	–	19	13	38	77	5

CODE	3D FILE	A	B	C	D	CH	GR
S19050	Download	M5	–	7,5	4	8	2	25
S19080	Download	G1/8	–	10	6	14	8	25
S19040	Download	G1/4	–	13	8	17	14	25
S19030	Download	G3/8	–	15	10	19	22	25
S19020	Download	G1/2	–	16	10	24	34	25
S19070	Download	G3/4	–	16,5	11	30	49	10
S19010	Download	G1	–	19	13	38	77	5

Unter Verbindungsbauteilen versteht man die Hauptsteckverbinder, um die verschiedenen Teile einer Anlage über Gewindeanschlüsse und Schlauchtüllen zu verbinden.
