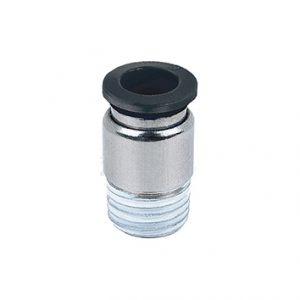

Les raccords rapides série K sont disponibles dans une large gamme de figures et de diamètres. Il s’agit d’une série de raccords rapides qui conjugue les économies du produit à des performances appropriées aux applications industrielles plus communes.
| CODE | A | B | C | D | E | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|
| K10T8040T | R1/8 | 4 | 20 | 8 | 10 | 3 | 6 | 50 |
| K10T4040T | R1/4 | 4 | 18 | 10 | 14 | 3 | 13 | 50 |
| K10T8060T | R1/8 | 6 | 21 | 8 | 12 | 4 | 7 | 50 |
| K10T4060T | R1/4 | 6 | 23 | 10 | 14 | 4 | 10 | 50 |
| K10T3060T | R3/8 | 6 | 21 | 11 | 17 | 4 | 21 | 25 |
| K10T2060T | R1/2 | 6 | 24,5 | 12 | 21 | 5 | 39 | 50 |
| K10T8080T | R1/8 | 8 | 26 | 8 | 14 | 5 | 10 | 50 |
| K10T4080T | R1/4 | 8 | 25 | 10 | 14 | 5 | 10 | 50 |
| K10T3080T | R3/8 | 8 | 22 | 11 | 17 | 6 | 18 | 50 |
| K10T2080T | R1/2 | 8 | 26 | 14 | 21 | 6 | 33 | 50 |
| K10T8100T | R1/8 | 10 | 30 | 8 | 17 | 5 | 15 | 50 |
| K10T4100T | R1/4 | 10 | 31 | 10 | 17 | 6 | 17 | 50 |
| K10T3100T | R3/8 | 10 | 29 | 11 | 17 | 8 | 20 | 50 |
| K10T2100T | R1/2 | 10 | 27 | 14 | 21 | 8 | 31 | 25 |
| K10T4120T | R1/4 | 12 | 33 | 10 | 21 | 6 | 20 | 25 |
| K10T3120T | R3/8 | 12 | 30 | 11 | 21 | 8 | 21 | 25 |
| K10T2120T | R1/2 | 12 | 32 | 14 | 21 | 8 | 29 | 25 |
| K10T3140T | R3/8 | 14 | 35 | 10,5 | 22,4 | 31 | 20 | |
| K10T2140T | R1/2 | 14 | 35 | 12 | 22,4 | 42 | 20 | |
| K10T3160T | R3/8 | 16 | 36 | 11 | 24 | 44 | 10 | |
| K10T2160T | R1/2 | 16 | 36 | 14 | 24 | 43 | 10 |
