CN Beidseitgwirkende Drosselverschraubung, Zylindrisch+Or

Die Drehzahlregler der Schnellverschraubungsbaureihe haben die gleichen Eigenschaften wie die entsprechende Baureihe von Anschlüssen.

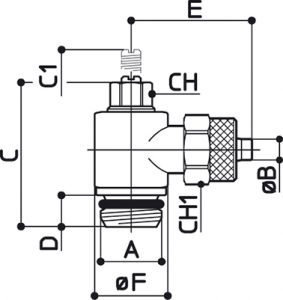

CODE	3D FILE	A	B	C	C1	D	E	F	CH	CH1	GR	Q–>R	R–>Q
CN8057	Download	G1/8	5/3	29,5	33	6	22,5	14	8	8	27	0-310 Nl/min	0-310 Nl/min	10
CN8067	Download	G1/8	6/4	29,5	33	6	24	14	8	12	31	0-500 Nl/min	0-500 Nl/min	10
CN4067	Download	G1/4	6/4	34	38	7	26	18	10	12	51	0-550 Nl/min	0-550 Nl/min	10
CN8087	Download	G1/8	8/6	29,5	33	6	24	14	8	14	32	0-480 Nl/min	0-480 Nl/min	10
CN4087	Download	G1/4	8/6	34	38	7	26	18	10	14	51	0-950 Nl/min	0-950 Nl/min	10
CN4107	Download	G1/4	10/8	34	38	7	28	18	10	16	54	0-950 Nl/min	0-950 Nl/min	10

CODE	3D FILE	A	B	C	C1	D	E	F	CH	CH1	GR	Q–>R	R–>Q
CN8057	Download	G1/8	5/3	29,5	33	6	22,5	14	8	8	27	0-310 Nl/min	0-310 Nl/min	10
CN8067	Download	G1/8	6/4	29,5	33	6	24	14	8	12	31	0-500 Nl/min	0-500 Nl/min	10
CN4067	Download	G1/4	6/4	34	38	7	26	18	10	12	51	0-550 Nl/min	0-550 Nl/min	10
CN8087	Download	G1/8	8/6	29,5	33	6	24	14	8	14	32	0-480 Nl/min	0-480 Nl/min	10
CN4087	Download	G1/4	8/6	34	38	7	26	18	10	14	51	0-950 Nl/min	0-950 Nl/min	10
CN4107	Download	G1/4	10/8	34	38	7	28	18	10	16	54	0-950 Nl/min	0-950 Nl/min	10

Die Drehzahlregler der Schnellverschraubungsbaureihe haben die gleichen Eigenschaften wie die entsprechende Baureihe von Anschlüssen.
