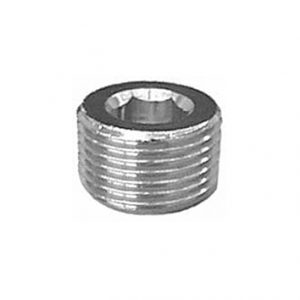

S25 Tapered Plug with Socket Head Screw

Pneumatic connectors are the elements that connect the various parts of pneumatic system through threaded connections and pipe-holding plugs. We offer a wide range of connectors, extensions, nipples, reductions, sleeves, caps, multiple fittings and distributors of various sizes.

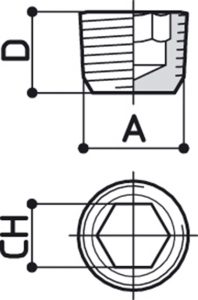

CODE	3D FILE	A	B	D	CH	GR
S25080	Download	R1/8	–	7,5	5	3	25
S25040	Download	R1/4	–	10	6	8	25
S25030	Download	R3/8	–	11	8	14	25
S25020	Download	R1/2	–	13	10	25	25

Pneumatic connectors are the elements that connect the various parts of pneumatic system through threaded connections and pipe-holding plugs. We offer a wide range of connectors, extensions, nipples, reductions, sleeves, caps, multiple fittings and distributors of various sizes.

CODE	3D FILE	A	B	D	CH	GR
S25080	Download	R1/8	–	7,5	5	3	25
S25040	Download	R1/4	–	10	6	8	25
S25030	Download	R3/8	–	11	8	14	25
S25020	Download	R1/2	–	13	10	25	25
