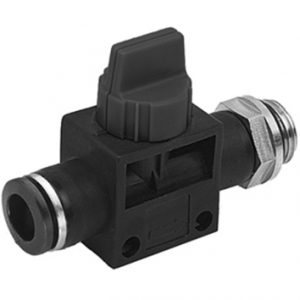

These couplings, moving the handle, allow to connect or divide the air flow between two areas of a system, moreover, in the case of a closed selector, an device allow to discharge in air the flow that come from the opposite sense than the arrow on the body of the product.
| CODE | 3D FILE | A | B | C | C1 | D | E | F | G | H | I | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KRTF8067 | G1/8 | 6 | 9 | 37,5 | 5,5 | 16 | 14,3 | 18,2 | 56,5 | 3 | 12 | 25 | 5 | |
| KRTF4067 | G1/4 | 6 | 19 | 37,5 | 6 | 16 | 14,3 | 18,2 | 59 | 3 | 14 | 25 | 5 | |
| KRTF3067 | G3/8 | 6 | 19 | 37,5 | 7 | 16 | 14,3 | 18,2 | 59,5 | 3 | 18 | 31 | 5 | |
| KRTF8087 | G1/8 | 8 | 20 | 37,5 | 5,5 | 16 | 14,3 | 18,2 | 59 | 3 | 12 | 25 | 5 | |
| KRTF4087 | G1/4 | 8 | 20 | 37,5 | 6 | 16 | 14,3 | 18,2 | 60 | 3 | 14 | 25 | 5 | |
| KRTF3087 | G3/8 | 8 | 20 | 37,5 | 7 | 16 | 14,3 | 18,2 | 61 | 3 | 18 | 31 | 5 | |
| KRTF4107 | G1/4 | 10 | 24 | 40,5 | 6 | 21,5 | 20,6 | 22 | 70 | 3 | 14 | 41 | 5 | |
| KRTF3107 | G3/8 | 10 | 24 | 40,5 | 7 | 21,5 | 20,6 | 22 | 72 | 3 | 18 | 45 | 5 | |
| KRTF2107 | G1/2 | 10 | 24 | 40,5 | 9 | 21,5 | 20,6 | 22 | 75 | 3 | 19 | 52 | 5 | |
| KRTF4127 | G1/4 | 12 | 24 | 40,5 | 6 | 21,5 | 20,6 | 22 | 72 | 3 | 14 | 45 | 5 | |
| KRTF3127 | G3/8 | 12 | 24 | 40,5 | 7 | 21,5 | 20,6 | 22 | 75 | 3 | 18 | 47 | 5 | |
| KRTF2127 | G1/2 | 12 | 24 | 40,5 | 9 | 21,5 | 20,6 | 22 | 78 | 3 | 19 | 55 | 5 |
