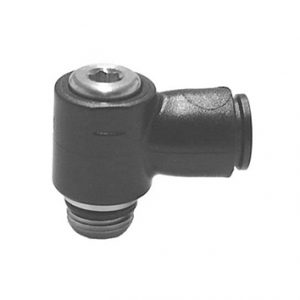

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

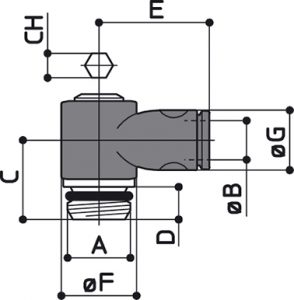

| CODE | 3D FILE | A | B | C | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E145048 | M5 | 4 | 13,5 | 4 | 18,5 | 9,5 | 9,8 | 2,5 | 4 | 25 | |
| E148047 | G1/8 | 4 | 15 | 5 | 19 | 14,3 | 10,3 | 4 | 9 | 25 | |
| E144047 | G1/4 | 4 | 13,5 | 6 | 19 | 14,3 | 10,3 | 4 | 12 | 25 | |
| E148067 | G1/8 | 6 | 15 | 5 | 20 | 14,3 | 12,6 | 4 | 10 | 25 | |
| E144067 | G1/4 | 6 | 13,5 | 6 | 20 | 14,3 | 12,6 | 4 | 12 | 25 | |
| E148087 | G1/8 | 8 | 15 | 5 | 21 | 14,3 | 14,5 | 4 | 10 | 25 | |
| E144087 | G1/4 | 8 | 13,5 | 6 | 21 | 14,3 | 14,5 | 4 | 13 | 25 |
