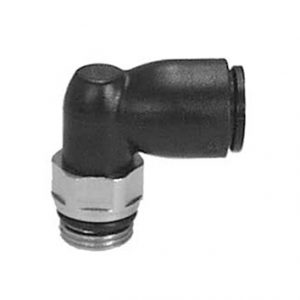

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

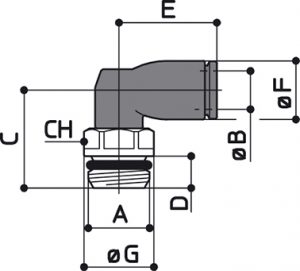

| CODE | 3D FILE | A | B | C | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E205048 | M5 | 4 | 14 | 4 | 16 | 10 | 9,9 | 8 | 3 | 25 | |
| E207147 | M7x1 | 4 | 15,5 | 5 | 16 | 10 | 9,9 | 9 | 4 | 25 | |
| E208047 | G1/8 | 4 | 16,5 | 5 | 16 | 10 | 11 | 10 | 7 | 25 | |
| E204047 | G1/4 | 4 | 18 | 6 | 16 | 10 | 14,3 | 10 | 8 | 25 | |
| E205068 | M5 | 6 | 15 | 4 | 18,5 | 12,6 | 9,9 | 9 | 5 | 25 | |
| E207167 | M7x1 | 6 | 16,5 | 5 | 18,5 | 12,6 | 9,9 | 9 | 5 | 25 | |
| E208067 | G1/8 | 6 | 17 | 5 | 18,5 | 12,6 | 11,7 | 11 | 8 | 25 | |
| E204067 | G1/4 | 6 | 19 | 6 | 18,5 | 12,6 | 14,3 | 11 | 10 | 25 | |
| E208087 | G1/8 | 8 | 20 | 5 | 20,5 | 14,5 | 14,3 | 13 | 12 | 25 | |
| E204087 | G1/4 | 8 | 20 | 6 | 20,5 | 14,5 | 14,3 | 13 | 12 | 25 | |
| E203087 | G3/8 | 8 | 23 | 8 | 20,5 | 14,5 | 18 | 13 | 17 | 25 | |
| E202087 | G1/2 | 8 | 24,3 | 9 | 20,5 | 14,5 | 22 | 13 | 20 | 25 | |
| E204107 | G1/4 | 10 | 23 | 6 | 26 | 16,3 | 17 | 16 | 18 | 25 | |
| E203107 | G3/8 | 10 | 25,5 | 8 | 26 | 16,3 | 20 | 18 | 24 | 25 | |
| E202107 | G1/2 | 10 | 27 | 9 | 26 | 16,3 | 24 | 22 | 35 | 25 | |
| E204127 | G1/4 | 12 | 25,5 | 6 | 29,5 | 19 | 21 | 19 | 29 | 10 | |
| E203127 | G3/8 | 12 | 27,5 | 8 | 29,5 | 19 | 21 | 19 | 31 | 10 | |
| E202127 | G1/2 | 12 | 29,5 | 9 | 29,5 | 19 | 24 | 22 | 42 | 10 |
