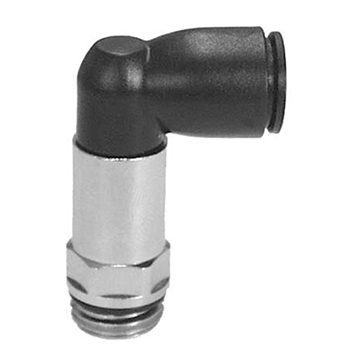

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

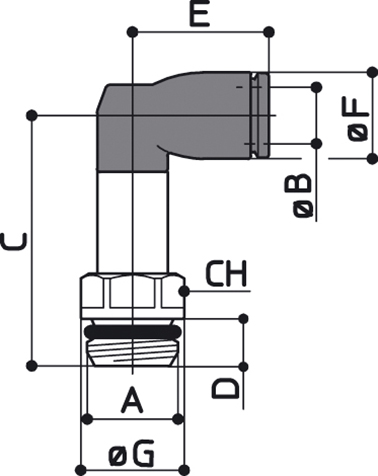

| CODE | 3D FILE | A | B | C | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E20L8047 | G1/8 | 4 | 27 | 5 | 16 | 10 | 11 | 10 | 11 | 25 | |
| E20L4047 | G1/4 | 4 | 29 | 6 | 16 | 10 | 14,3 | 10 | 9 | 25 | |
| E20L8067 | G1/8 | 6 | 31 | 5 | 18,5 | 12,6 | 11,7 | 11 | 16 | 25 | |
| E20L4067 | G1/4 | 6 | 33 | 6 | 18,5 | 12,6 | 14,3 | 11 | 14 | 25 | |
| E20L8087 | G1/8 | 8 | 35,5 | 5 | 20,5 | 14,5 | 14,3 | 13 | 27 | 25 | |
| E20L4087 | G1/4 | 8 | 36 | 6 | 20,5 | 14,5 | 14,3 | 13 | 22 | 25 | |
| E20L3087 | G3/8 | 8 | 39 | 8 | 20,5 | 14,5 | 18 | 13 | 16 | 25 |
