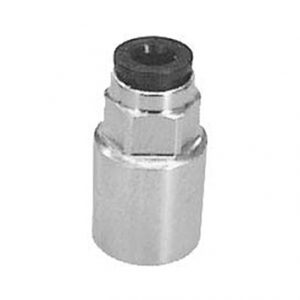

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.
| CODE | 3D FILE | A | B | C | D | E | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|
| E238040 | G1/8 | 4 | 23,8 | 10 | 13 | 10 | 12 | 25 | |
| E234040 | G1/4 | 4 | 25,8 | 12 | 17 | 10 | 19 | 25 | |
| E238060 | G1/8 | 6 | 25,8 | 10 | 13 | 12 | 13 | 25 | |
| E234060 | G1/4 | 6 | 27,5 | 12 | 17 | 12 | 22 | 25 | |
| E238080 | G1/8 | 8 | 26,5 | 10 | 15 | 14 | 19 | 25 | |
| E234080 | G1/4 | 8 | 28,5 | 12 | 17 | 14 | 23 | 25 | |
| E233080 | G3/8 | 8 | 29,5 | 13 | 21 | 14 | 31 | 25 | |
| E234100 | G1/4 | 10 | 29,5 | 12 | 17 | 16 | 26 | 25 | |
| E233100 | G3/8 | 10 | 30,5 | 13 | 21 | 16 | 35 | 25 |
