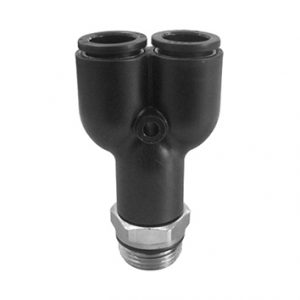

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.
| CODE | 3D FILE | A | B | C | D | E | F | G | H | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E345048 | M5 | 4 | 36,5 | 4 | 9,2 | 3,2 | 9,9 | 10,2 | 8 | 7 | 25 | |
| E348047 | G1/8 | 4 | 39 | 5 | 9,2 | 3,2 | 11 | 10,2 | 10 | 10 | 25 | |
| E344047 | G1/4 | 4 | 40,5 | 6 | 9,2 | 3,2 | 14,3 | 10,2 | 10 | 11 | 25 | |
| E348067 | G1/8 | 6 | 43 | 5 | 9,2 | 3,2 | 11,7 | 12,5 | 11 | 14 | 25 | |
| E344067 | G1/4 | 6 | 45 | 6 | 11,3 | 3,2 | 14,3 | 12,5 | 11 | 15 | 25 | |
| E348087 | G1/8 | 8 | 46,5 | 5 | 14,5 | 3,2 | 11 | 14,5 | 13 | 20 | 25 | |
| E344087 | G1/4 | 8 | 48,5 | 6 | 14,5 | 3,2 | 14,3 | 14,5 | 13 | 21 | 25 | |
| E343087 | G3/8 | 8 | 51 | 7,8 | 14,5 | 3,2 | 18 | 14,5 | 13 | 25 | 25 | |
| E344107 | G1/4 | 10 | 54,5 | 6 | 15,5 | 3,2 | 17 | 16,3 | 16 | 28 | 25 | |
| E343107 | G3/8 | 10 | 57,5 | 7,8 | 15,5 | 3,2 | 20 | 16,3 | 18 | 34 | 25 | |
| E342107 | G1/2 | 10 | 59 | 9 | 15,5 | 3,2 | 24 | 16,3 | 22 | 45 | 10 | |
| E343127 | G3/8 | 12 | 64 | 7,8 | 18,5 | 3,2 | 21 | 19 | 19 | 47 | 10 | |
| E342127 | G1/2 | 12 | 65,5 | 9 | 18,5 | 3,2 | 24 | 19 | 22 | 57 | 10 |
