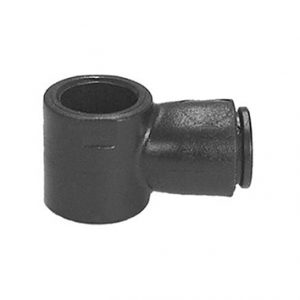

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

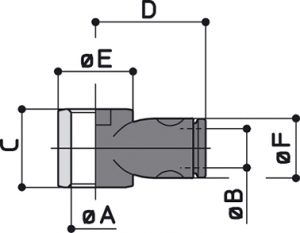

| CODE | 3D FILE | A | B | C | D | E | F | G | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|
| E385040 | 5.2-M5 | 4 | 10,5 | 18,5 | 9,5 | 9,8 | 4 | 2 | 25 | |
| E388040 | 9.9-1/8 | 4 | 15,5 | 19 | 14,3 | 10,3 | 6 | 3 | 25 | |
| E384040 | 13.1-1/4 | 4 | 17,5 | 20,5 | 17,3 | 10,3 | 7,5 | 3 | 25 | |
| E388060 | 9.9-1/8 | 6 | 15,5 | 20 | 14,3 | 12,6 | 6 | 3 | 25 | |
| E384060 | 13.1-1/4 | 6 | 17,5 | 21,5 | 17,3 | 12,6 | 7,5 | 4 | 25 | |
| E388080 | 9.9-1/8 | 8 | 15,5 | 21 | 14,3 | 14,5 | 6 | 3 | 25 | |
| E384080 | 13.1-1/4 | 8 | 17,5 | 22,5 | 17,3 | 14,5 | 7,5 | 4 | 25 |
*This article can be used with hollow cod. 35-35RP without seal washer
