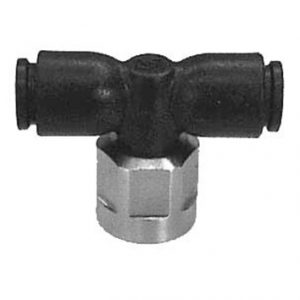

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

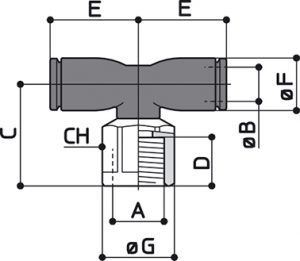

| CODE | 3D FILE | A | B | C | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E418040 | G1/8 | 4 | 18 | 10 | 16 | 10 | 13 | 12 | 10 | 25 | |
| E414040 | G1/4 | 4 | 20 | 12 | 16 | 10 | 17 | 16 | 15 | 25 | |
| E418060 | G1/8 | 6 | 19 | 10 | 18,5 | 12,6 | 13 | 12 | 11 | 25 | |
| E414060 | G1/4 | 6 | 21 | 12 | 18,5 | 12,6 | 17 | 16 | 17 | 25 | |
| E418080 | G1/8 | 8 | 20 | 10 | 20,5 | 14,5 | 13 | 12 | 13 | 25 | |
| E414080 | G1/4 | 8 | 22 | 12 | 20,5 | 14,5 | 17 | 16 | 19 | 25 | |
| E413080 | G3/8 | 8 | 23 | 13 | 20,5 | 14,5 | 21 | 19 | 24 | 25 | |
| E414100 | G1/4 | 10 | 25 | 12 | 26 | 16,3 | 17 | 16 | 25 | 25 | |
| E413100 | G3/8 | 10 | 26 | 13 | 26 | 16,3 | 21 | 19 | 29 | 25 |
