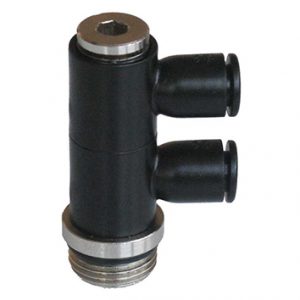

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

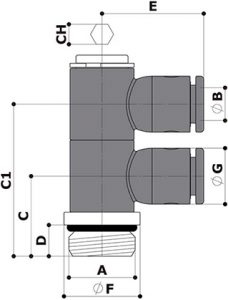

| CODE | 3D FILE | A | B | C | C1 | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9080441 | G1/8 | 4 | 15,4 | 31,5 | 5 | 19,8 | 14 | 9 | 4 | 20 | 25 | |
| E9040441 | G1/4 | 4 | 16,4 | 32,5 | 6 | 19,8 | 14,5 | 9 | 4 | 22 | 25 | |
| E9080661 | G1/8 | 6 | 15,4 | 31,5 | 5 | 21,6 | 14 | 12,2 | 4 | 16 | 25 | |
| E9040661 | G1/4 | 6 | 16,4 | 32,5 | 6 | 21,6 | 14,5 | 12,2 | 4 | 18 | 25 | |
| E9040662 | G1/4 | 6 | 18 | 36 | 6 | 23,1 | 17 | 12,1 | 5 | 34 | 25 | |
| E9030662 | G3/8 | 6 | 20 | 38 | 7,8 | 23,1 | 19 | 12,2 | 5 | 40 | 25 | |
| E9040882 | G1/4 | 8 | 18 | 36 | 6 | 25,4 | 17 | 14 | 5 | 36 | 25 | |
| E9030882 | G3/8 | 8 | 20 | 38 | 7,8 | 25,4 | 19 | 14 | 5 | 42 | 25 |
Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.
| CODE | 3D FILE | A | B | C | C1 | D | E | F | G | CH | GR | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9080441 | G1/8 | 4 | 15,4 | 31,5 | 5 | 19,8 | 14 | 9 | 4 | 20 | 25 | |
| E9040441 | G1/4 | 4 | 16,4 | 32,5 | 6 | 19,8 | 14,5 | 9 | 4 | 22 | 25 | |
| E9080661 | G1/8 | 6 | 15,4 | 31,5 | 5 | 21,6 | 14 | 12,2 | 4 | 16 | 25 | |
| E9040661 | G1/4 | 6 | 16,4 | 32,5 | 6 | 21,6 | 14,5 | 12,2 | 4 | 18 | 25 | |
| E9040662 | G1/4 | 6 | 18 | 36 | 6 | 23,1 | 17 | 12,1 | 5 | 34 | 25 | |
| E9030662 | G3/8 | 6 | 20 | 38 | 7,8 | 23,1 | 19 | 12,2 | 5 | 40 | 25 | |
| E9040882 | G1/4 | 8 | 18 | 36 | 6 | 25,4 | 17 | 14 | 5 | 36 | 25 | |
| E9030882 | G3/8 | 8 | 20 | 38 | 7,8 | 25,4 | 19 | 14 | 5 | 42 | 25 |
