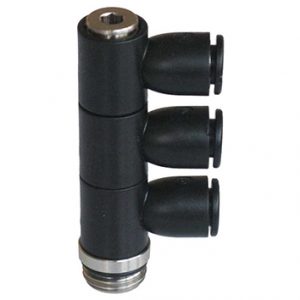

Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

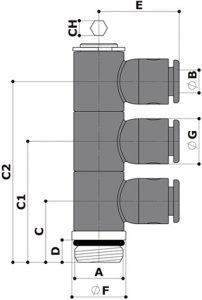

| CODE | 3D FILE | A | B | C | C1 | C2 | D | E | F | G | CH | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9084441 | G1/8 | 4 | 15,4 | 31,5 | 47,6 | 5 | 19,8 | 14 | 9 | 4 | 27 | 10 | |
| E9044441 | G1/4 | 4 | 16,4 | 32,5 | 48,6 | 6 | 19,8 | 14,5 | 9 | 4 | 32 | 10 | |
| E9086661 | G1/8 | 6 | 15,4 | 31,5 | 47,6 | 5 | 21,6 | 14 | 12,2 | 4 | 30 | 10 | |
| E9046661 | G1/4 | 6 | 16,4 | 32,5 | 48,6 | 6 | 21,6 | 14,5 | 12,2 | 4 | 36 | 10 | |
| E9046662 | G1/4 | 6 | 18 | 36 | 54 | 6 | 23,1 | 16 | 12,2 | 5 | 44 | 10 | |
| E9036662 | G3/8 | 6 | 20 | 38 | 56 | 7,8 | 23,1 | 19 | 12,2 | 5 | 51 | 10 | |
| E9048882 | G1/4 | 8 | 18 | 36 | 54 | 6 | 25,4 | 16 | 14 | 5 | 47 | 10 | |
| E9038882 | G3/8 | 8 | 20 | 38 | 56 | 7,8 | 25,4 | 19 | 14 | 5 | 54 | 10 |
Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.
| CODE | 3D FILE | A | B | C | C1 | C2 | D | E | F | G | CH | GR | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9084441 | G1/8 | 4 | 15,4 | 31,5 | 47,6 | 5 | 19,8 | 14 | 9 | 4 | 27 | 10 | |
| E9044441 | G1/4 | 4 | 16,4 | 32,5 | 48,6 | 6 | 19,8 | 14,5 | 9 | 4 | 32 | 10 | |
| E9086661 | G1/8 | 6 | 15,4 | 31,5 | 47,6 | 5 | 21,6 | 14 | 12,2 | 4 | 30 | 10 | |
| E9046661 | G1/4 | 6 | 16,4 | 32,5 | 48,6 | 6 | 21,6 | 14,5 | 12,2 | 4 | 36 | 10 | |
| E9046662 | G1/4 | 6 | 18 | 36 | 54 | 6 | 23,1 | 16 | 12,2 | 5 | 44 | 10 | |
| E9036662 | G3/8 | 6 | 20 | 38 | 56 | 7,8 | 23,1 | 19 | 12,2 | 5 | 51 | 10 | |
| E9048882 | G1/4 | 8 | 18 | 36 | 54 | 6 | 25,4 | 16 | 14 | 5 | 47 | 10 | |
| E9038882 | G3/8 | 8 | 20 | 38 | 56 | 7,8 | 25,4 | 19 | 14 | 5 | 54 | 10 |
