Easy fitting is the ideal product for those looking for excellent performance, compact dimensions and extreme lightness. Fast fittings have a system for gripping the tube made by a stainless steel ring as well as a special thread with OR which ensures the minimum encumbrance of the external hexagonal key and a secure sealing on imperfect threaded seats.

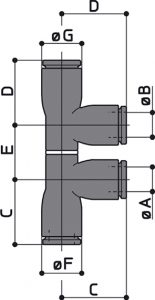

| CODE | 3D FILE | A | B | C | D | E | F | G | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|
| E920040 | 4 | 4 | 16 | 16 | 13 | 10 | 10 | 6 | 10 | |
| E926040 | 6 | 4 | 18,5 | 16 | 14 | 12,6 | 10 | 7 | 10 | |
| E928040 | 8 | 4 | 20,5 | 16 | 15 | 14,5 | 10 | 10 | 10 | |
| E920060 | 6 | 6 | 18,5 | 18,5 | 15 | 12,6 | 12,6 | 9 | 10 | |
| E928060 | 8 | 6 | 20,5 | 18,5 | 16 | 14,5 | 12,6 | 11 | 10 | |
| E921060 | 10 | 6 | 26 | 18,5 | 18 | 16,3 | 12,6 | 18 | 10 | |
| E920080 | 8 | 8 | 20,5 | 20,5 | 17 | 14,5 | 14,5 | 13 | 10 | |
| E921080 | 10 | 8 | 26 | 20,5 | 19 | 16,3 | 14,5 | 20 | 10 | |
| E920100 | 10 | 10 | 26 | 26 | 22 | 16,3 | 16,3 | 27 | 10 |
