The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

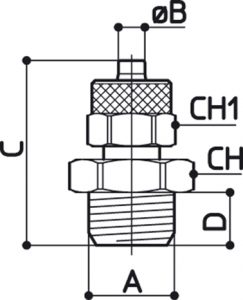

| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|
| C10505 | M5 | 5/3 | 20,5 | 4 | 8 | 9 | 6 | 25 | |
| C10605 | M6x1 | 5/3 | 21 | 5 | 8 | 8 | 5 | 25 | |
| C10506 | M5 | 6/4 | 21,5 | 4 | 8 | 9 | 6 | 25 | |
| C10606 | M6x1 | 6/4 | 22,5 | 5 | 8 | 9 | 6 | 25 | |
| C1012126 | M12x1.25 | 6/4 | 28 | 8 | 17 | 12 | 23 | 25 | |
| C1012156 | M12x1.5 | 6/4 | 28 | 8 | 17 | 12 | 22 | 25 | |
| C1012128 | M12x1.25 | 8/6 | 28 | 8 | 17 | 14 | 24 | 25 | |
| C1012158 | M12x1.5 | 8/6 | 28 | 8 | 17 | 14 | 24 | 25 |
