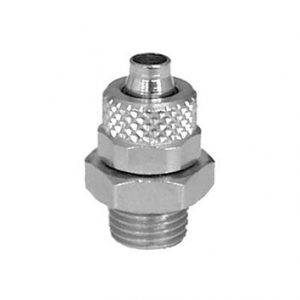

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

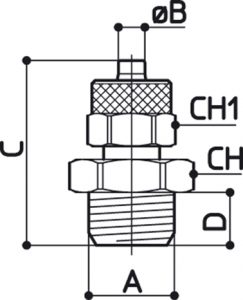

| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|
| C108059 | G1/8 | 5/3 | 23 | 6 | 14 | 8 | 11 | 25 | |
| C108069 | G1/8 | 6/4 | 25,5 | 6 | 14 | 12 | 16 | 25 | |
| C104069 | G1/4 | 6/4 | 28 | 8 | 17 | 12 | 24 | 25 | |
| C103069 | G3/8 | 6/4 | 29 | 9 | 19 | 12 | 27 | 25 | |
| C108089 | G1/8 | 8/6 | 26 | 6 | 14 | 14 | 19 | 25 | |
| C104089 | G1/4 | 8/6 | 29 | 8 | 17 | 14 | 24 | 25 | |
| C103089 | G3/8 | 8/6 | 30,5 | 9 | 19 | 14 | 31 | 25 | |
| C108109 | G1/8 | 10/8 | 27,5 | 6 | 14 | 16 | 24 | 25 | |
| C104109 | G1/4 | 10/8 | 29,5 | 8 | 17 | 16 | 30 | 25 | |
| C103109 | G3/8 | 10/8 | 32 | 9 | 19 | 16 | 34 | 25 | |
| C102109 | G1/2 | 10/8 | 33,5 | 10 | 24 | 16 | 48 | 25 | |
| C103129 | G3/8 | 12/10 | 32,5 | 9 | 19 | 19 | 37 | 25 | |
| C102129 | G1/2 | 12/10 | 34 | 10 | 24 | 19 | 55 | 25 | |
| C102159 | G1/2 | 15/12.5 | 35,5 | 10 | 24 | 22 | 60 | 10 |
The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.
| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR | |
|---|---|---|---|---|---|---|---|---|---|
| C108059 | G1/8 | 5/3 | 23 | 6 | 14 | 8 | 11 | 25 | |
| C108069 | G1/8 | 6/4 | 25,5 | 6 | 14 | 12 | 16 | 25 | |
| C104069 | G1/4 | 6/4 | 28 | 8 | 17 | 12 | 24 | 25 | |
| C103069 | G3/8 | 6/4 | 29 | 9 | 19 | 12 | 27 | 25 | |
| C108089 | G1/8 | 8/6 | 26 | 6 | 14 | 14 | 19 | 25 | |
| C104089 | G1/4 | 8/6 | 29 | 8 | 17 | 14 | 24 | 25 | |
| C103089 | G3/8 | 8/6 | 30,5 | 9 | 19 | 14 | 31 | 25 | |
| C108109 | G1/8 | 10/8 | 27,5 | 6 | 14 | 16 | 24 | 25 | |
| C104109 | G1/4 | 10/8 | 29,5 | 8 | 17 | 16 | 30 | 25 | |
| C103109 | G3/8 | 10/8 | 32 | 9 | 19 | 16 | 34 | 25 | |
| C102109 | G1/2 | 10/8 | 33,5 | 10 | 24 | 16 | 48 | 25 | |
| C103129 | G3/8 | 12/10 | 32,5 | 9 | 19 | 19 | 37 | 25 | |
| C102129 | G1/2 | 12/10 | 34 | 10 | 24 | 19 | 55 | 25 | |
| C102159 | G1/2 | 15/12.5 | 35,5 | 10 | 24 | 22 | 60 | 10 |
