C10 Fixed Tapered Straight Push-On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

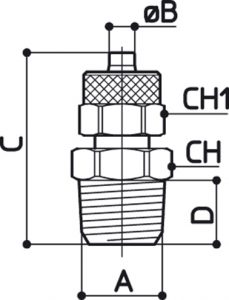

CODE	3D FILE	A	B	C	D	CH	CH1	GR
C10805	Download	R1/8	5/3	26	8	12	9	10	25
C10806	Download	R1/8	6/4	27,5	8	12	12	15	25
C10406	Download	R1/4	6/4	31	11	14	12	21	25
C10306	Download	R3/8	6/4	31,5	11	17	12	26	25
C10808	Download	R1/8	8/6	28	8	13	14	18	25
C10408	Download	R1/4	8/6	32	11	14	14	23	25
C10308	Download	R3/8	8/6	31,5	11	17	14	28	25
C10810	Download	R1/8	10/8	29,5	8	14	16	25	25
C10410	Download	R1/4	10/8	32,5	11	14	16	27	25
C10310	Download	R3/8	10/8	33	11	17	16	34	25
C10210	Download	R1/2	10/8	38	14	22	16	46	25
C10412	Download	R1/4	12/10	34	11	17	19	37	25
C10312	Download	R3/8	12/10	34,5	11	17	19	37	25
C10212	Download	R1/2	12/10	38	14	22	19	49	25
C10215	Download	R1/2	15/12.5	39,5	14	22	22	62	10

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	CH	CH1	GR
C10805	Download	R1/8	5/3	26	8	12	9	10	25
C10806	Download	R1/8	6/4	27,5	8	12	12	15	25
C10406	Download	R1/4	6/4	31	11	14	12	21	25
C10306	Download	R3/8	6/4	31,5	11	17	12	26	25
C10808	Download	R1/8	8/6	28	8	13	14	18	25
C10408	Download	R1/4	8/6	32	11	14	14	23	25
C10308	Download	R3/8	8/6	31,5	11	17	14	28	25
C10810	Download	R1/8	10/8	29,5	8	14	16	25	25
C10410	Download	R1/4	10/8	32,5	11	14	16	27	25
C10310	Download	R3/8	10/8	33	11	17	16	34	25
C10210	Download	R1/2	10/8	38	14	22	16	46	25
C10412	Download	R1/4	12/10	34	11	17	19	37	25
C10312	Download	R3/8	12/10	34,5	11	17	19	37	25
C10212	Download	R1/2	12/10	38	14	22	19	49	25
C10215	Download	R1/2	15/12.5	39,5	14	22	22	62	10
