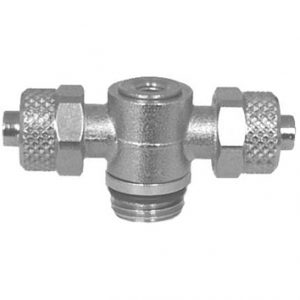

C13 Swivel Branch Tee Socket Head Screw+Or Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

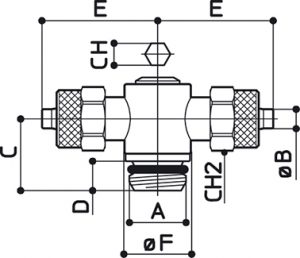

CODE	3D FILE	A	B	C	D	E	F	CH	CH2	GR
C138057	Download	G1/8	5/3	13,5	5	22,5	14	4	8	26	25
C134057	Download	G1/4	5/3	15	6	24	14,3	4	12	28	25
C138067	Download	G1/8	6/4	13,5	5	26	14	4	12	34	25
C134067	Download	G1/4	6/4	15	6	24	14,3	4	14	38	25
C138087	[popup_link]	G1/8	8/6	13,5	5	26	14	4	14	38	25
C134087	Download	G1/4	8/6	15	6	28	14,3	4	16	41	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	F	CH	CH2	GR
C138057	Download	G1/8	5/3	13,5	5	22,5	14	4	8	26	25
C134057	Download	G1/4	5/3	15	6	24	14,3	4	12	28	25
C138067	Download	G1/8	6/4	13,5	5	26	14	4	12	34	25
C134067	Download	G1/4	6/4	15	6	24	14,3	4	14	38	25
C138087	[popup_link]	G1/8	8/6	13,5	5	26	14	4	14	38	25
C134087	Download	G1/4	8/6	15	6	28	14,3	4	16	41	25
