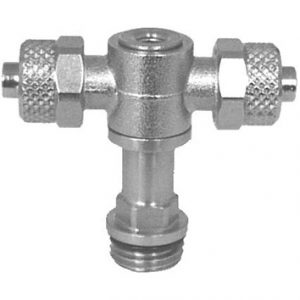

C13L Long Swivel Branch Tee Socket Head Screw+Or Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

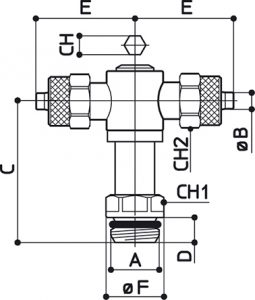

CODE	3D FILE	A	B	C	D	E	F	CH	CH1	CH2	GR
C13L8057	Download	G1/8	5/3	30,5	5	22,5	14	4	10	8	34	25
C13L4057	Download	G1/4	5/3	32	6	24	14,3	4	10	12	36	25
C13L8067	Download	G1/8	6/4	30,5	5	26	14	4	10	12	43	25
C13L4067	Download	G1/4	6/4	32	6	24	14,3	4	10	14	45	25
C13L8087	Download	G1/8	8/6	30,5	5	26	14	4	10	14	47	25
C13L4087	Download	G1/4	8/6	32	6	28	14,3	4	10	16	49	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	F	CH	CH1	CH2	GR
C13L8057	Download	G1/8	5/3	30,5	5	22,5	14	4	10	8	34	25
C13L4057	Download	G1/4	5/3	32	6	24	14,3	4	10	12	36	25
C13L8067	Download	G1/8	6/4	30,5	5	26	14	4	10	12	43	25
C13L4067	Download	G1/4	6/4	32	6	24	14,3	4	10	14	45	25
C13L8087	Download	G1/8	8/6	30,5	5	26	14	4	10	14	47	25
C13L4087	Download	G1/4	8/6	32	6	28	14,3	4	10	16	49	25
