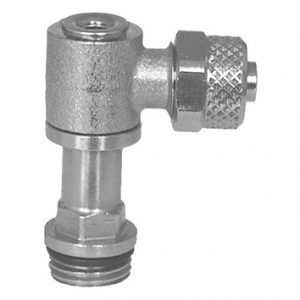

C14L Long Swivel Elbow Socket Head Screw+Or Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

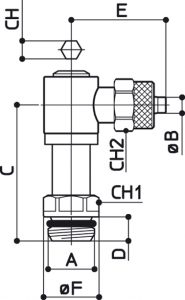

CODE	3D FILE	A	B	C	D	E	F	CH	CH1	CH2	GR
C14L8057	Download	G1/8	5/3	30,5	5	22,5	14	4	10	8	28	25
C14L4057	Download	G1/4	5/3	32	6	24	14,3	4	10	12	34	25
C14L8067	Download	G1/8	6/4	30,5	5	26	14	4	10	12	24	25
C14L4067	Download	G1/4	6/4	32	6	24	14,3	4	10	14	35	25
C14L8087	Download	G1/8	8/6	30,5	5	26	14	4	10	14	31	25
C14L4087	Download	G1/4	8/6	32	6	28	14,3	4	10	16	37	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	F	CH	CH1	CH2	GR
C14L8057	Download	G1/8	5/3	30,5	5	22,5	14	4	10	8	28	25
C14L4057	Download	G1/4	5/3	32	6	24	14,3	4	10	12	34	25
C14L8067	Download	G1/8	6/4	30,5	5	26	14	4	10	12	24	25
C14L4067	Download	G1/4	6/4	32	6	24	14,3	4	10	14	35	25
C14L8087	Download	G1/8	8/6	30,5	5	26	14	4	10	14	31	25
C14L4087	Download	G1/4	8/6	32	6	28	14,3	4	10	16	37	25
