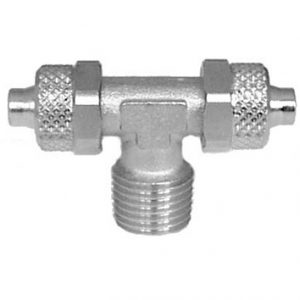

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

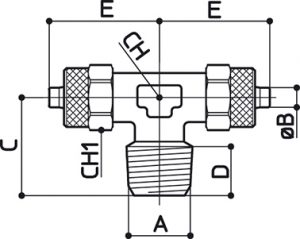

| CODE | 3D FILE | A | B | C | D | E | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|
| C18505 | M5 | 5/3 | 14,5 | 4 | 21,5 | 8 | 8 | 15 | 25 | |
| C18805 | R1/8 | 5/3 | 17 | 8 | 21,5 | 8 | 8 | 16 | 25 | |
| C18806 | R1/8 | 6/4 | 17 | 8 | 22 | 8 | 12 | 27 | 25 | |
| C18406 | R1/4 | 6/4 | 21 | 11 | 22,5 | 10 | 12 | 35 | 25 | |
| C18306 | R3/8 | 6/4 | 22,5 | 11 | 23,5 | 11 | 12 | 42 | 25 | |
| C18808 | R1/8 | 8/6 | 20 | 8 | 22,5 | 10 | 14 | 33 | 25 | |
| C18408 | R1/4 | 8/6 | 21 | 11 | 22,5 | 10 | 14 | 38 | 25 | |
| C18308 | R3/8 | 8/6 | 24 | 11 | 23,5 | 11 | 14 | 44 | 25 | |
| C18810 | R1/8 | 10/8 | 18,5 | 8 | 25,5 | 11 | 16 | 43 | 25 | |
| C18410 | R1/4 | 10/8 | 23 | 11 | 26 | 11 | 16 | 51 | 25 | |
| C18310 | R3/8 | 10/8 | 23 | 11 | 26,5 | 11 | 16 | 56 | 25 | |
| C18210 | R1/2 | 10/8 | 29 | 14 | 30 | 17 | 16 | 94 | 25 | |
| C18312 | R3/8 | 12/10 | 25 | 11 | 30 | 13 | 19 | 65 | 10 | |
| C18212 | R1/2 | 12/10 | 28 | 14 | 30 | 17 | 19 | 109 | 10 | |
| C18215 | R1/2 | 15/12.5 | 28 | 14 | 34 | 17 | 22 | 106 | 10 |
