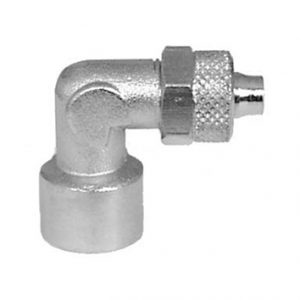

C19 Fixed Female Elbow Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

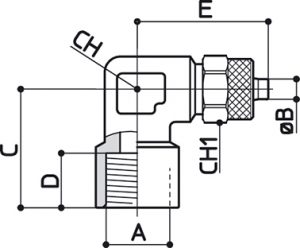

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
C19805	Download	G1/8	5/3	19	8	21,5	10	8	24	25
C19806	Download	G1/8	6/4	20	8	23	10	12	21	25
C19406	Download	G1/4	6/4	25,5	11	26	13	12	30	25
C19808	Download	G1/8	8/6	20	8	23	10	14	23	25
C19408	Download	G1/4	8/6	25,5	11	26	13	14	32	25
C19410	Download	G1/4	10/8	25,5	11	26	13	16	36	25
C19312	Download	G3/8	12/10	28	11	30,5	17	18	61	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
C19805	Download	G1/8	5/3	19	8	21,5	10	8	24	25
C19806	Download	G1/8	6/4	20	8	23	10	12	21	25
C19406	Download	G1/4	6/4	25,5	11	26	13	12	30	25
C19808	Download	G1/8	8/6	20	8	23	10	14	23	25
C19408	Download	G1/4	8/6	25,5	11	26	13	14	32	25
C19410	Download	G1/4	10/8	25,5	11	26	13	16	36	25
C19312	Download	G3/8	12/10	28	11	30,5	17	18	61	25
