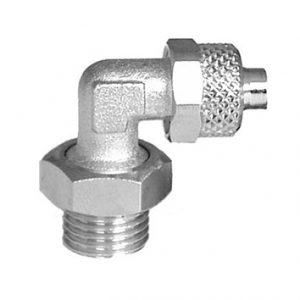

C20 Swivel Parallel Elbow Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

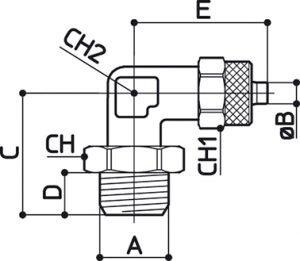

CODE	3D FILE	A	B	C	D	E	CH	CH1	CH2	GR
C208069	Download	G1/8	6/4	22,5	6	22,5	14	12	8	23	25
C204069	Download	G1/4	6/4	25	8	23,5	17	12	10	34	25
C208089	Download	G1/8	8/6	22,5	6	23,5	14	14	10	30	25
C204089	Download	G1/4	8/6	25	8	23,5	17	14	10	36	25
C204109	Download	G1/4	10/8	22,5	8	25,5	17	16	11	43	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	CH	CH1	CH2	GR
C208069	Download	G1/8	6/4	22,5	6	22,5	14	12	8	23	25
C204069	Download	G1/4	6/4	25	8	23,5	17	12	10	34	25
C208089	Download	G1/8	8/6	22,5	6	23,5	14	14	10	30	25
C204089	Download	G1/4	8/6	25	8	23,5	17	14	10	36	25
C204109	Download	G1/4	10/8	22,5	8	25,5	17	16	11	43	25
