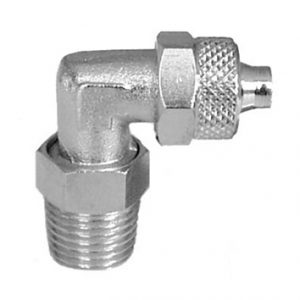

C20 Swivel Tapered Elbow Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	CH	CH1	CH2	GR
C20806	Download	R1/8	6/4	25	8	22	12	12	9	22	25
C20406	Download	R1/4	6/4	29	11	24	14	12	10	29	25
C20808	Download	R1/8	8/6	25	8	24	12	14	10	29	25
C20408	Download	R1/4	8/6	29	11	24	14	14	10	32	25
C20410	Download	R1/4	10/8	29	11	26	14	16	11	37	25
C20310	Download	R3/8	10/8	29	11	26	17	16	11	49	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	CH	CH1	CH2	GR
C20806	Download	R1/8	6/4	25	8	22	12	12	9	22	25
C20406	Download	R1/4	6/4	29	11	24	14	12	10	29	25
C20808	Download	R1/8	8/6	25	8	24	12	14	10	29	25
C20408	Download	R1/4	8/6	29	11	24	14	14	10	32	25
C20410	Download	R1/4	10/8	29	11	26	14	16	11	37	25
C20310	Download	R3/8	10/8	29	11	26	17	16	11	49	25
