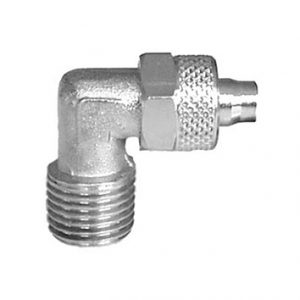

C21 Fixed Tapered Elbow Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

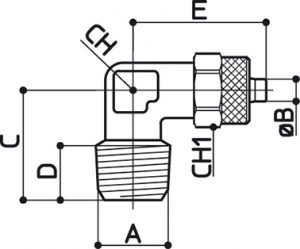

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
C21805	Download	R1/8	5/3	18,5	8	20	9	9	11	25
C21806	Download	R1/8	6/4	18,5	8	22	9	12	16	25
C21406	Download	R1/4	6/4	21	11	24	10	12	22	25
C21306	Download	R3/8	6/4	22	11	25,5	11	12	29	25
C21808	Download	R1/8	8/6	19	8	24	10	14	20	25
C21408	Download	R1/4	8/6	21	11	24	10	14	24	25
C21308	Download	R3/8	8/6	22	11	25,5	11	14	32	25
C21810	Download	R1/8	10/8	19	8	25,5	11	16	28	25
C21410	Download	R1/4	10/8	22	11	26	11	16	32	25
C21310	Download	R3/8	10/8	22	11	26	11	16	34	25
C21210	Download	R1/2	10/8	29	14	30	17	16	58	25
C21412	Download	R1/4	12/10	24	11	28,5	13	19	43	10
C21312	Download	R3/8	12/10	24	11	28,5	13	19	47	10
C21212	Download	R1/2	12/10	29	14	30	17	19	61	10
C21215	Download	R1/2	15/12.5	28	14	34	17	22	70	10

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
C21805	Download	R1/8	5/3	18,5	8	20	9	9	11	25
C21806	Download	R1/8	6/4	18,5	8	22	9	12	16	25
C21406	Download	R1/4	6/4	21	11	24	10	12	22	25
C21306	Download	R3/8	6/4	22	11	25,5	11	12	29	25
C21808	Download	R1/8	8/6	19	8	24	10	14	20	25
C21408	Download	R1/4	8/6	21	11	24	10	14	24	25
C21308	Download	R3/8	8/6	22	11	25,5	11	14	32	25
C21810	Download	R1/8	10/8	19	8	25,5	11	16	28	25
C21410	Download	R1/4	10/8	22	11	26	11	16	32	25
C21310	Download	R3/8	10/8	22	11	26	11	16	34	25
C21210	Download	R1/2	10/8	29	14	30	17	16	58	25
C21412	Download	R1/4	12/10	24	11	28,5	13	19	43	10
C21312	Download	R3/8	12/10	24	11	28,5	13	19	47	10
C21212	Download	R1/2	12/10	29	14	30	17	19	61	10
C21215	Download	R1/2	15/12.5	28	14	34	17	22	70	10
