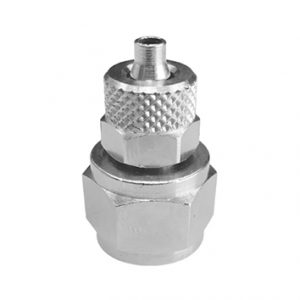

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

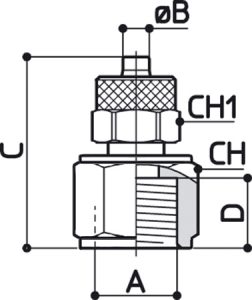

| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|
| C23805 | G1/8 | 5/3 | 22,5 | 8 | 4 | 8 | 12 | 25 | |
| C23806 | G1/8 | 6/4 | 27 | 8 | 14 | 12 | 18 | 25 | |
| C23406 | G1/4 | 6/4 | 29 | 11 | 17 | 12 | 25 | 25 | |
| C23306 | G3/8 | 6/4 | 29,5 | 11,5 | 20 | 12 | 30 | 25 | |
| C23808 | G1/8 | 8/6 | 28 | 8 | 14 | 14 | 20 | 25 | |
| C23408 | G1/4 | 8/6 | 29 | 11 | 17 | 14 | 28 | 25 | |
| C23308 | G3/8 | 8/6 | 29,5 | 11,5 | 20 | 14 | 31 | 25 | |
| C23810 | G1/8 | 10/8 | 26,5 | 8 | 14 | 16 | 24 | 25 | |
| C23410 | G1/4 | 10/8 | 30,5 | 11 | 17 | 16 | 32 | 25 | |
| C23310 | G3/8 | 10/8 | 31 | 11,5 | 20 | 16 | 36 | 25 | |
| C23210 | G1/2 | 10/8 | 34,5 | 14 | 24 | 16 | 49 | 25 | |
| C23312 | G3/8 | 12/10 | 32,5 | 11,5 | 20 | 18 | 40 | 10 |
