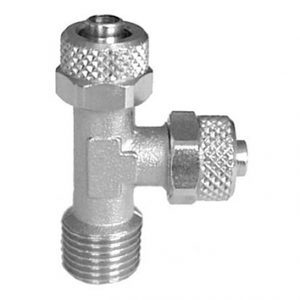

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

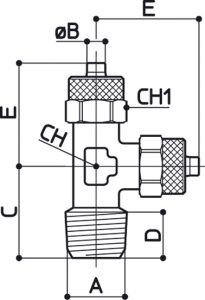

| CODE | 3D FILE | A | B | C | D | E | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|
| C30505 | M5 | 5/3 | 14,5 | 4 | 21,5 | 8 | 8 | 15 | 25 | |
| C30805 | R1/8 | 5/3 | 17 | 8 | 21,5 | 8 | 8 | 15 | 25 | |
| C30806 | R1/8 | 6/4 | 18 | 8 | 22,5 | 8 | 12 | 27 | 25 | |
| C30406 | R1/4 | 6/4 | 20 | 11 | 22,5 | 10 | 12 | 33 | 25 | |
| C30306 | R3/8 | 6/4 | 22,5 | 11 | 23,5 | 11 | 12 | 40 | 25 | |
| C30808 | R1/8 | 8/6 | 18 | 8 | 25 | 10 | 14 | 36 | 25 | |
| C30408 | R1/4 | 8/6 | 20 | 11 | 25 | 10 | 14 | 37 | 25 | |
| C30308 | R3/8 | 8/6 | 24 | 11 | 25 | 11 | 14 | 43 | 25 | |
| C30810 | R1/8 | 10/8 | 18,5 | 8 | 25,5 | 11 | 16 | 42 | 25 | |
| C30410 | R1/4 | 10/8 | 22 | 11 | 25 | 11 | 16 | 46 | 25 | |
| C30310 | R3/8 | 10/8 | 32,5 | 11 | 25,5 | 11 | 16 | 56 | 25 | |
| C30210 | R1/2 | 10/8 | 30 | 14 | 28 | 17 | 16 | 91 | 25 | |
| C30312 | R3/8 | 12/10 | 24,5 | 11 | 30 | 14 | 18 | 73 | 10 | |
| C30212 | R1/2 | 12/10 | 28 | 14 | 30 | 17 | 18 | 120 | 10 | |
| C30215 | R1/2 | 15/12.5 | 28 | 14 | 34 | 17 | 22 | 108 | 10 |
The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.
| CODE | 3D FILE | A | B | C | D | E | CH | CH1 | GR | |
|---|---|---|---|---|---|---|---|---|---|---|
| C30505 | M5 | 5/3 | 14,5 | 4 | 21,5 | 8 | 8 | 15 | 25 | |
| C30805 | R1/8 | 5/3 | 17 | 8 | 21,5 | 8 | 8 | 15 | 25 | |
| C30806 | R1/8 | 6/4 | 18 | 8 | 22,5 | 8 | 12 | 27 | 25 | |
| C30406 | R1/4 | 6/4 | 20 | 11 | 22,5 | 10 | 12 | 33 | 25 | |
| C30306 | R3/8 | 6/4 | 22,5 | 11 | 23,5 | 11 | 12 | 40 | 25 | |
| C30808 | R1/8 | 8/6 | 18 | 8 | 25 | 10 | 14 | 36 | 25 | |
| C30408 | R1/4 | 8/6 | 20 | 11 | 25 | 10 | 14 | 37 | 25 | |
| C30308 | R3/8 | 8/6 | 24 | 11 | 25 | 11 | 14 | 43 | 25 | |
| C30810 | R1/8 | 10/8 | 18,5 | 8 | 25,5 | 11 | 16 | 42 | 25 | |
| C30410 | R1/4 | 10/8 | 22 | 11 | 25 | 11 | 16 | 46 | 25 | |
| C30310 | R3/8 | 10/8 | 32,5 | 11 | 25,5 | 11 | 16 | 56 | 25 | |
| C30210 | R1/2 | 10/8 | 30 | 14 | 28 | 17 | 16 | 91 | 25 | |
| C30312 | R3/8 | 12/10 | 24,5 | 11 | 30 | 14 | 18 | 73 | 10 | |
| C30212 | R1/2 | 12/10 | 28 | 14 | 30 | 17 | 18 | 120 | 10 | |
| C30215 | R1/2 | 15/12.5 | 28 | 14 | 34 | 17 | 22 | 108 | 10 |
