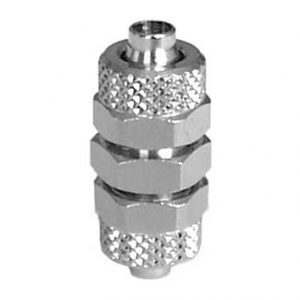

C50 Intermediate Straight Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

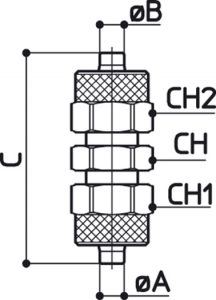

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C50005	Download	5/3	5/3	28,5	8	8	8	8	25
C50006	Download	6/4	6/4	34,5	12	12	12	22	25
C50608	Download	6/4	8/6	35	14	14	12	26	25
C50008	Download	8/6	8/6	35	14	14	14	29	25
C50010	Download	10/8	10/8	38	14	16	16	37	25
C50012	Download	12/10	12/10	42	17	19	19	51	25
C50015	Download	15/12.5	15/12.5	45,5	22	22	22	77	10

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C50005	Download	5/3	5/3	28,5	8	8	8	8	25
C50006	Download	6/4	6/4	34,5	12	12	12	22	25
C50608	Download	6/4	8/6	35	14	14	12	26	25
C50008	Download	8/6	8/6	35	14	14	14	29	25
C50010	Download	10/8	10/8	38	14	16	16	37	25
C50012	Download	12/10	12/10	42	17	19	19	51	25
C50015	Download	15/12.5	15/12.5	45,5	22	22	22	77	10
