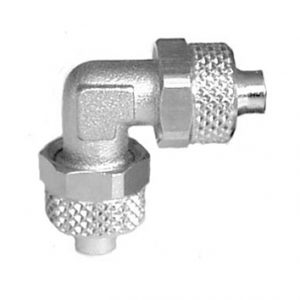

C60 Intermediate Elbow Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

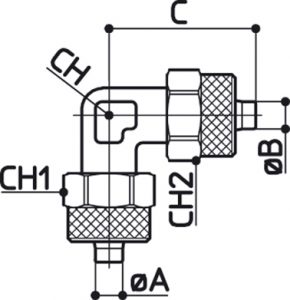

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C60005	Download	5/3	5/3	18	9	9	9	12	25
C60006	Download	6/4	6/4	21,5	8	12	12	21	25
C60608	Download	6/4	8/6	22,5	10	14	12	28	25
C60008	Download	8/6	8/6	22,5	10	14	14	28	25
C60010	Download	10/8	10/8	25,5	11	16	16	38	25
C60012	Download	12/10	12/10	29	13	19	19	61	25
C60015	Download	15/12.5	15/12.5	34	17	22	22	88	10

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C60005	Download	5/3	5/3	18	9	9	9	12	25
C60006	Download	6/4	6/4	21,5	8	12	12	21	25
C60608	Download	6/4	8/6	22,5	10	14	12	28	25
C60008	Download	8/6	8/6	22,5	10	14	14	28	25
C60010	Download	10/8	10/8	25,5	11	16	16	38	25
C60012	Download	12/10	12/10	29	13	19	19	61	25
C60015	Download	15/12.5	15/12.5	34	17	22	22	88	10
