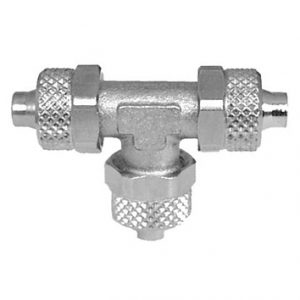

C70 Intermediate Tee Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

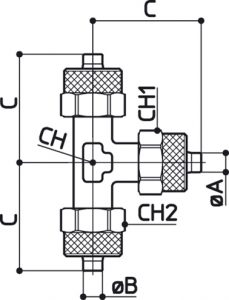

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C70005	Download	5/3	5/3	21,5	8	8	8	17	25
C70006	Download	6/4	6/4	22,5	8	12	12	32	25
C70608	Download	6/4	8/6	22,5	10	14	12	39	25
C70008	Download	8/6	8/6	22,5	10	14	14	42	25
C70010	Download	10/8	10/8	25,5	11	16	16	57	25
C70012	Download	12/10	12/10	29	13	19	19	82	10
C70015	Download	15/12.5	15/12.5	34	17	22	22	123	10

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	CH	CH1	CH2	GR
C70005	Download	5/3	5/3	21,5	8	8	8	17	25
C70006	Download	6/4	6/4	22,5	8	12	12	32	25
C70608	Download	6/4	8/6	22,5	10	14	12	39	25
C70008	Download	8/6	8/6	22,5	10	14	14	42	25
C70010	Download	10/8	10/8	25,5	11	16	16	57	25
C70012	Download	12/10	12/10	29	13	19	19	82	10
C70015	Download	15/12.5	15/12.5	34	17	22	22	123	10
