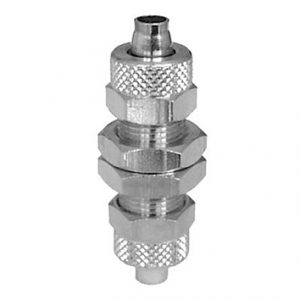

C80 Bulkhead Straight Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

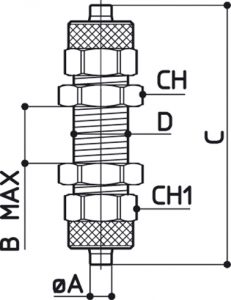

CODE	3D FILE	A	B	C	D	CH	CH1	GR
C80005	Download	5/3	8,5	40	M7x0.75	8	8	22	25
C80015	Download	15/12.5	8,5	58	M20x1	24	22	109	10
C80010	Download	10/8	10	51	M14x1	17	16	55	25
C80012	Download	12/10	10	52	M16x1	19	19	79	10
C80006	Download	6/4	10,5	48	M10x1	14	12	33	25
C80008	Download	8/6	12	50	M12x1	17	14	42	25

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	D	CH	CH1	GR
C80005	Download	5/3	8,5	40	M7x0.75	8	8	22	25
C80015	Download	15/12.5	8,5	58	M20x1	24	22	109	10
C80010	Download	10/8	10	51	M14x1	17	16	55	25
C80012	Download	12/10	10	52	M16x1	19	19	79	10
C80006	Download	6/4	10,5	48	M10x1	14	12	33	25
C80008	Download	8/6	12	50	M12x1	17	14	42	25
