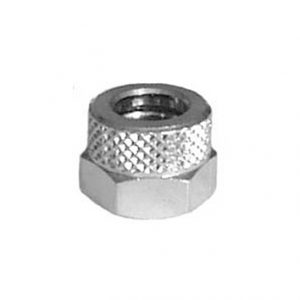

CDB Lock Nut Push On

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

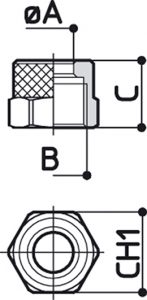

CODE	3D FILE	A	B	C	CH1	GR
CDB005	Download	5/3	M7x0.7.5	9	9	2	100
CDB060	Download	6/4	M8x0.7.5	9	9	2	100
CDB006	Download	6/4	M10x1	10	12	4	100
CDB008	Download	8/6	M12x1	10	14	5	100
CDB010	Download	10/8	M14x1	11,5	16	7	100
CDB012	Download	12/10	M16x1	13	19	8	50
CDB015	Download	15/12.5	M20x1	15,5	22	15	50

The push-on fittings are provided with a cone whose shape ensures, once the tube is fitted and the nut properly tightened, the perfect pneumatic sealing.

CODE	3D FILE	A	B	C	CH1	GR
CDB005	Download	5/3	M7x0.7.5	9	9	2	100
CDB060	Download	6/4	M8x0.7.5	9	9	2	100
CDB006	Download	6/4	M10x1	10	12	4	100
CDB008	Download	8/6	M12x1	10	14	5	100
CDB010	Download	10/8	M14x1	11,5	16	7	100
CDB012	Download	12/10	M16x1	13	19	8	50
CDB015	Download	15/12.5	M20x1	15,5	22	15	50
