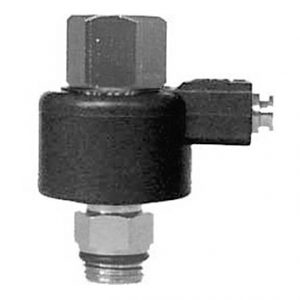

The blocking valves are products which, thanks to a pneumatic drive, allow or block the passage of air. These products are available in bidirectional or unidirectional versions, with the main body in nylon or in zama, standard or reduced size. The particular design of these products guarantees a very high flow rate combined with an extreme sensitivity of the pneumatic driving, which results in a considerable operation speed.

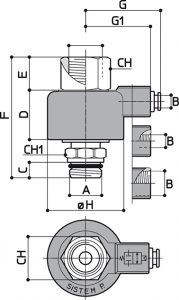

| CODE | 3D FILE | A | B | C | D | E | F | G | G1 | H | TYPE | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 614401 | G1/4 | 4 | 6 | 20,5 | 13,5 | 51 | 29 | 26 | 30 | 1 | 14 | 17 | 64 | 1 | |
| 6144012 | G1/4 | 4 | 6 | 20,5 | 13,5 | 51 | 29 | 26 | 30 | 1 | 14 | 17 | 76 | 1 | |
| 613301 | G3/8 | 4 | 7 | 25,5 | 13,5 | 63 | 32,5 | 29 | 37 | 1 | 18 | 22 | 116 | 1 | |
| 6133012 | G3/8 | 4 | 7 | 25,5 | 13,5 | 63 | 32,5 | 29 | 37 | 1 | 18 | 22 | 131 | 1 | |
| 612201 | G1/2 | 4 | 7,5 | 32,5 | 14 | 75 | 46 | 32 | 46 | 2 | 22 | 30 | 324 | 1 | |
| 624401 | G1/4 | M5 | 6 | 20,5 | 13,5 | 51 | 26 | 30 | 2 | 14 | 17 | 98 | 1 | ||
| 623301 | G3/8 | M5 | 7 | 25,5 | 13,5 | 63 | 29 | 37 | 2 | 18 | 22 | 152 | 1 | ||
| 622201 | G1/2 | M5 | 7,5 | 32,5 | 14 | 75 | 32 | 46 | 2 | 22 | 30 | 299 | 1 | ||
| 634401 | G1/4 | G1/8 | 6 | 20,5 | 13,5 | 51 | 26 | 30 | 2 | 14 | 17 | 93 | 1 | ||
| 633301 | G3/8 | G1/8 | 7 | 25,5 | 13,5 | 63 | 29 | 37 | 2 | 18 | 22 | 160 | 1 | ||
| 632201 | G1/2 | G1/8 | 7,5 | 32,5 | 14 | 75 | 32 | 46 | 2 | 22 | 30 | 316 | 1 |
CORPO ESTERNO – TIPO: 1 = NYLON – TIPO: 2 = ZAMA-15
The blocking valves are products which, thanks to a pneumatic drive, allow or block the passage of air. These products are available in bidirectional or unidirectional versions, with the main body in nylon or in zama, standard or reduced size. The particular design of these products guarantees a very high flow rate combined with an extreme sensitivity of the pneumatic driving, which results in a considerable operation speed.
| CODE | 3D FILE | A | B | C | D | E | F | G | G1 | H | TYPE | CH | CH1 | GR | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 614401 | G1/4 | 4 | 6 | 20,5 | 13,5 | 51 | 29 | 26 | 30 | 1 | 14 | 17 | 64 | 1 | |
| 6144012 | G1/4 | 4 | 6 | 20,5 | 13,5 | 51 | 29 | 26 | 30 | 1 | 14 | 17 | 76 | 1 | |
| 613301 | G3/8 | 4 | 7 | 25,5 | 13,5 | 63 | 32,5 | 29 | 37 | 1 | 18 | 22 | 116 | 1 | |
| 6133012 | G3/8 | 4 | 7 | 25,5 | 13,5 | 63 | 32,5 | 29 | 37 | 1 | 18 | 22 | 131 | 1 | |
| 612201 | G1/2 | 4 | 7,5 | 32,5 | 14 | 75 | 46 | 32 | 46 | 2 | 22 | 30 | 324 | 1 | |
| 624401 | G1/4 | M5 | 6 | 20,5 | 13,5 | 51 | 26 | 30 | 2 | 14 | 17 | 98 | 1 | ||
| 623301 | G3/8 | M5 | 7 | 25,5 | 13,5 | 63 | 29 | 37 | 2 | 18 | 22 | 152 | 1 | ||
| 622201 | G1/2 | M5 | 7,5 | 32,5 | 14 | 75 | 32 | 46 | 2 | 22 | 30 | 299 | 1 | ||
| 634401 | G1/4 | G1/8 | 6 | 20,5 | 13,5 | 51 | 26 | 30 | 2 | 14 | 17 | 93 | 1 | ||
| 633301 | G3/8 | G1/8 | 7 | 25,5 | 13,5 | 63 | 29 | 37 | 2 | 18 | 22 | 160 | 1 | ||
| 632201 | G1/2 | G1/8 | 7,5 | 32,5 | 14 | 75 | 32 | 46 | 2 | 22 | 30 | 316 | 1 |
CORPO ESTERNO – TIPO: 1 = NYLON – TIPO: 2 = ZAMA-15
