The quick exhaust valves are able to quickly discharge the air contained in a circuit; if applied on a cylinder they allow to increase the return speed of the stem.

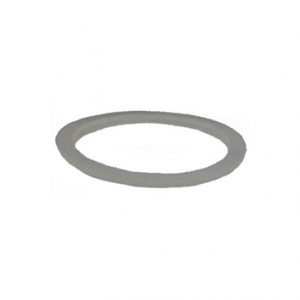

| CODE | 3D FILE | A | B | C | F | GR |  |
|---|---|---|---|---|---|---|---|
| VGR005 | 12,4 | 17 | 0,8 | M5 | 0,1 | 10 | |
| VGR008 | 20 | 24 | 1 | G1/8 | 0,1 | 10 | |
| VGR004 | 24 | 28,5 | 1 | G1/4 – G3/8 | 0,2 | 10 | |
| VGR002 | 32 | 38,5 | 1,5 | G1/2 | 0,6 | 10 | |
| VGR001 | 38 | 45 | 1,5 | G3/4 – G1 | 0,8 | 10 |
