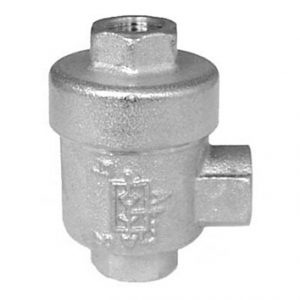

VSR Quick Exhaust Valve

The quick exhaust valves are able to quickly discharge the air contained in a circuit; if applied on a cylinder they allow to increase the return speed of the stem.

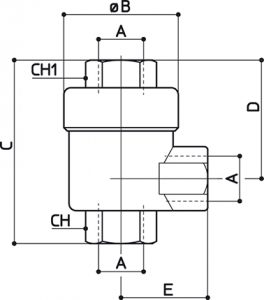

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
VSR500	Download	M5	20	24,8	15,6	10,5	10	10	27	10
VSR800	Download	G1/8	28	42	28	19,5	14	14	88	10
VSR400	Download	G1/4	34,5	53,5	33	25	19	19	147	5
VSR300	Download	G3/8	33	58	36	26	21	21	159	5
VSR200	Download	G1/2	44	71	43,5	35,2	26	26	315	5
VSR700	Download	G3/4	48	86	52	38,5	32	32	454	2
VSR100	Download	G1	49	94	56	42	38	38	525	1

The quick exhaust valves are able to quickly discharge the air contained in a circuit; if applied on a cylinder they allow to increase the return speed of the stem.

CODE	3D FILE	A	B	C	D	E	CH	CH1	GR
VSR500	Download	M5	20	24,8	15,6	10,5	10	10	27	10
VSR800	Download	G1/8	28	42	28	19,5	14	14	88	10
VSR400	Download	G1/4	34,5	53,5	33	25	19	19	147	5
VSR300	Download	G3/8	33	58	36	26	21	21	159	5
VSR200	Download	G1/2	44	71	43,5	35,2	26	26	315	5
VSR700	Download	G3/4	48	86	52	38,5	32	32	454	2
VSR100	Download	G1	49	94	56	42	38	38	525	1
