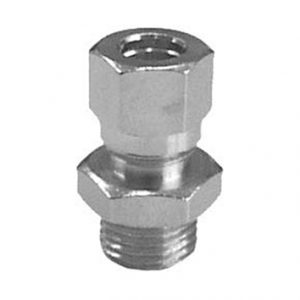

Raccordi ad Ogiva garantiscono l’aggancio del tubo e la tenuta pneumatica/idraulica del raccordo tramite la compressione sul tubo di un anello denominato “ogiva”

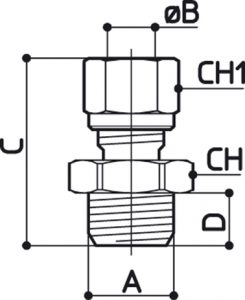

| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR |  |
|---|---|---|---|---|---|---|---|---|---|
| GV108049 | G1/8 | 4 | 25 | 6 | 14 | 10 | 15 | 25 | |
| GV108069 | G1/8 | 6 | 26 | 6 | 14 | 12 | 17 | 25 | |
| GV104069 | G1/4 | 6 | 29,5 | 8 | 17 | 12 | 25 | 25 | |
| GV108089 | G1/8 | 8 | 27,5 | 6 | 14 | 14 | 19 | 25 | |
| GV104089 | G1/4 | 8 | 30 | 8 | 17 | 14 | 26 | 25 | |
| GV103089 | G3/8 | 8 | 30,5 | 9 | 19 | 14 | 34 | 25 | |
| GV104109 | G1/4 | 10 | 34,5 | 8 | 17 | 19 | 44 | 25 | |
| GV103109 | G3/8 | 10 | 36 | 9 | 19 | 19 | 54 | 25 |
Raccordi ad Ogiva garantiscono l’aggancio del tubo e la tenuta pneumatica/idraulica del raccordo tramite la compressione sul tubo di un anello denominato “ogiva”
| CODE | 3D FILE | A | B | C | D | CH | CH1 | GR | |
|---|---|---|---|---|---|---|---|---|---|
| GV108049 | G1/8 | 4 | 25 | 6 | 14 | 10 | 15 | 25 | |
| GV108069 | G1/8 | 6 | 26 | 6 | 14 | 12 | 17 | 25 | |
| GV104069 | G1/4 | 6 | 29,5 | 8 | 17 | 12 | 25 | 25 | |
| GV108089 | G1/8 | 8 | 27,5 | 6 | 14 | 14 | 19 | 25 | |
| GV104089 | G1/4 | 8 | 30 | 8 | 17 | 14 | 26 | 25 | |
| GV103089 | G3/8 | 8 | 30,5 | 9 | 19 | 14 | 34 | 25 | |
| GV104109 | G1/4 | 10 | 34,5 | 8 | 17 | 19 | 44 | 25 | |
| GV103109 | G3/8 | 10 | 36 | 9 | 19 | 19 | 54 | 25 |
