GV10 Fisso Diritto Conico Ogiva

Raccordi ad Ogiva garantiscono l’aggancio del tubo e la tenuta pneumatica/idraulica del raccordo tramite la compressione sul tubo di un anello denominato “ogiva”

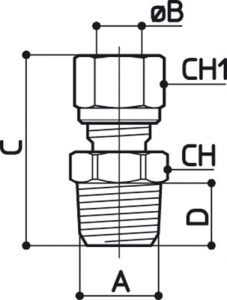

CODE	3D FILE	A	B	C	D	CH	CH1	GR
GV10804	Download	R1/8	4	27	8	10	10	13	25
GV10806	Download	R1/8	6	28	8	12	12	16	25
GV10406	Download	R1/4	6	32,5	11	14	12	24	25
GV10808	Download	R1/8	8	29,5	8	12	14	18	25
GV10408	Download	R1/4	8	33	11	14	14	24	25
GV10308	Download	R3/8	8	33	11,5	17	14	35	25
GV10410	Download	R1/4	10	37,5	11	17	19	44	25
GV10310	Download	R3/8	10	38	11,5	17	19	49	25
GV10210	Download	R1/2	10	40,5	14	22	19	74	25
GV10312	Download	R3/8	12	39	11,5	19	22	58	25
GV10212	Download	R1/2	12	41	14	22	22	78	25
GV10214	Download	R1/2	14	44,5	14	22	27	110	25
GV10215	Download	R1/2	15	44,5	14	22	27	95	10
GV10216	Download	R1/2	16	45	14	24	30	109	5
GV10218	Download	R1/2	18	45	14	26	32	125	5

Raccordi ad Ogiva garantiscono l’aggancio del tubo e la tenuta pneumatica/idraulica del raccordo tramite la compressione sul tubo di un anello denominato “ogiva”

CODE	3D FILE	A	B	C	D	CH	CH1	GR
GV10804	Download	R1/8	4	27	8	10	10	13	25
GV10806	Download	R1/8	6	28	8	12	12	16	25
GV10406	Download	R1/4	6	32,5	11	14	12	24	25
GV10808	Download	R1/8	8	29,5	8	12	14	18	25
GV10408	Download	R1/4	8	33	11	14	14	24	25
GV10308	Download	R3/8	8	33	11,5	17	14	35	25
GV10410	Download	R1/4	10	37,5	11	17	19	44	25
GV10310	Download	R3/8	10	38	11,5	17	19	49	25
GV10210	Download	R1/2	10	40,5	14	22	19	74	25
GV10312	Download	R3/8	12	39	11,5	19	22	58	25
GV10212	Download	R1/2	12	41	14	22	22	78	25
GV10214	Download	R1/2	14	44,5	14	22	27	110	25
GV10215	Download	R1/2	15	44,5	14	22	27	95	10
GV10216	Download	R1/2	16	45	14	24	30	109	5
GV10218	Download	R1/2	18	45	14	26	32	125	5
